Gearmotor VarmoTech FBT14 H85 M32 5.0

SKU:

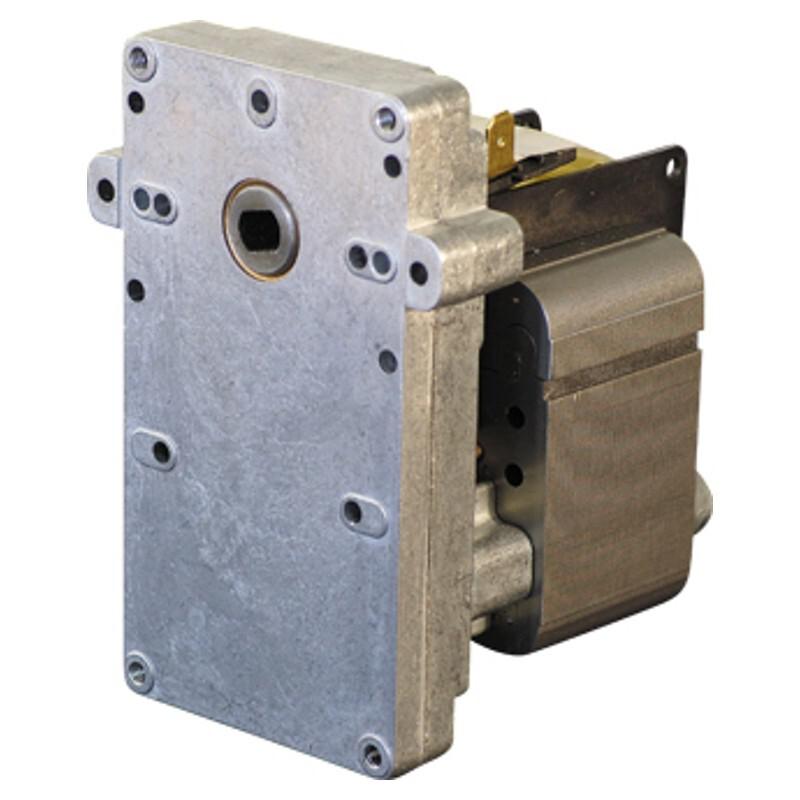

AC gearmotor 5.0 RPM with hollow shaft clockwise rotation.
Save 0.00 € (- 0 %)

168,30 € 168,30 € 168.3 EUR

137,95 €

    This combination does not exist.



    Designed for low speed and high torque applications. KB1004 geared motor is suited to be used as rotor in pellet stoves.

    Equivalente Mellor KB1010 - KB1015.

    For stoves:

    • KARMEK ONE

    • EUROSTEK

    Technical data

    General data
    Rotation speed5,00 RPM
    Magnetic core32 mm
    Shaft diameter8,50 mm
    Shaft millingDouble
    RotationClockwise
    Output torque20 Nm
    Encoder
    Power supply
    Power consumption29 W
    Power supply230/1/50 V/Ø/Hz

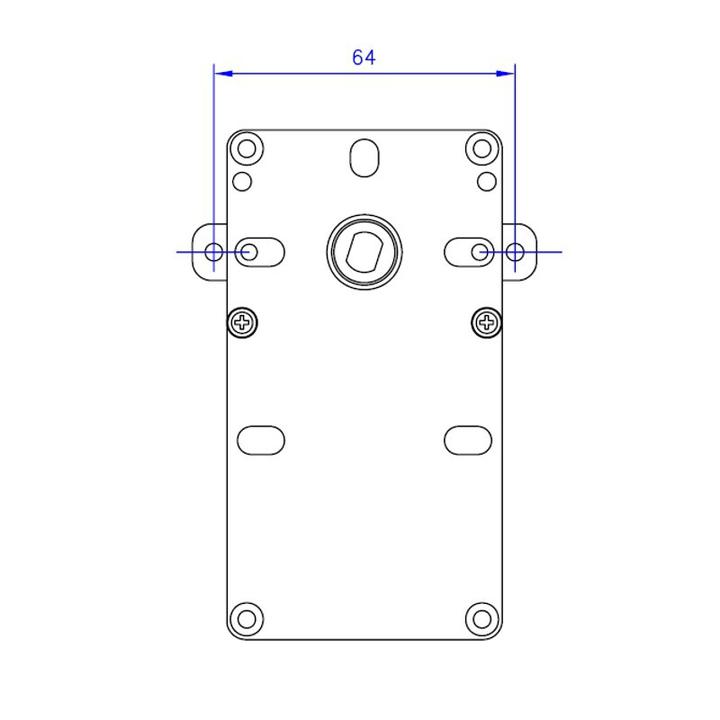

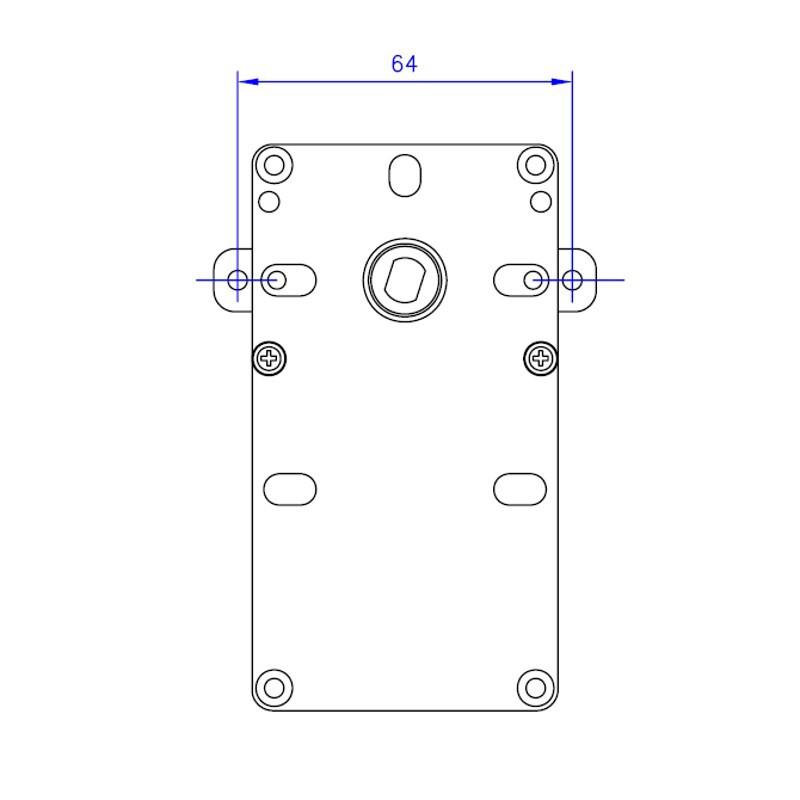

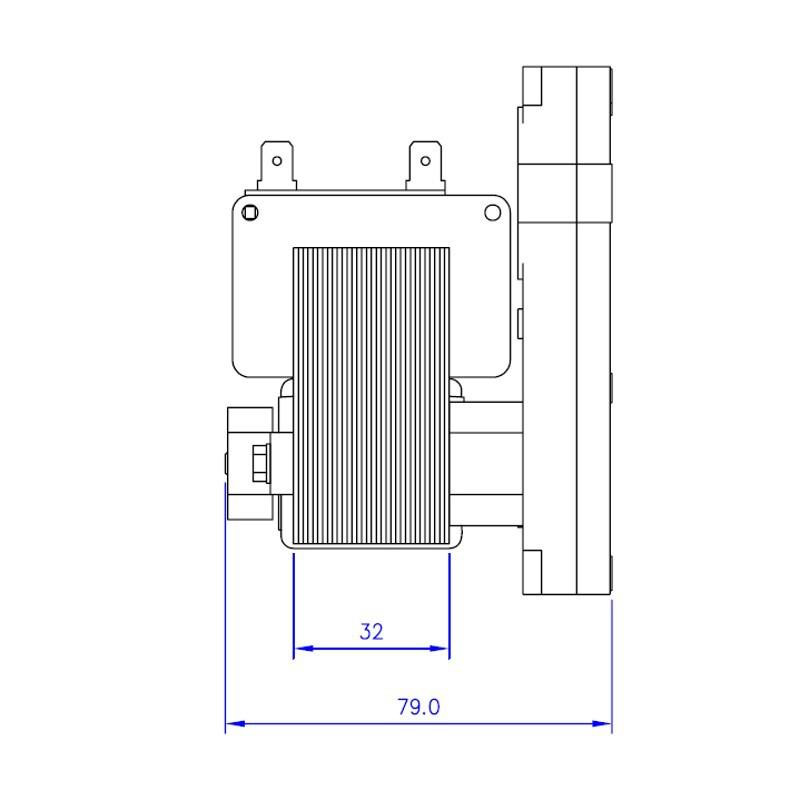

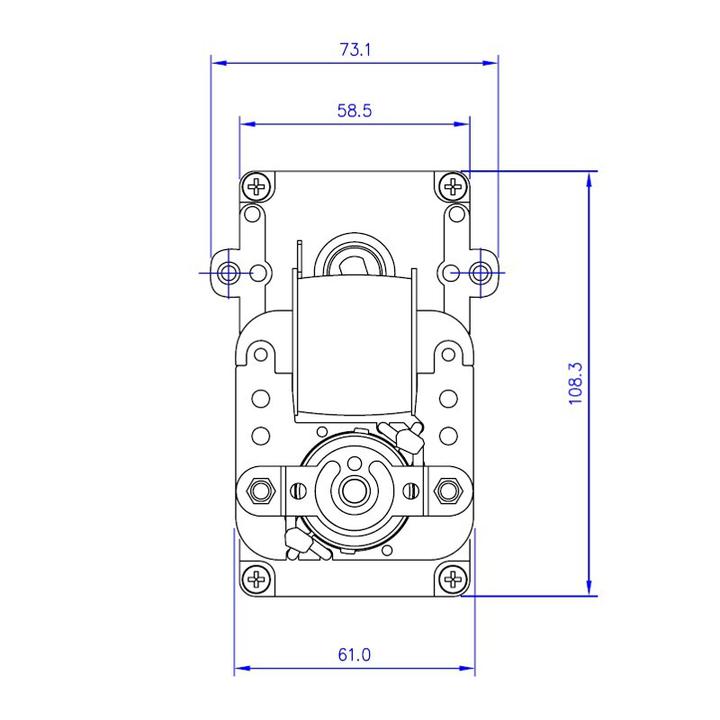

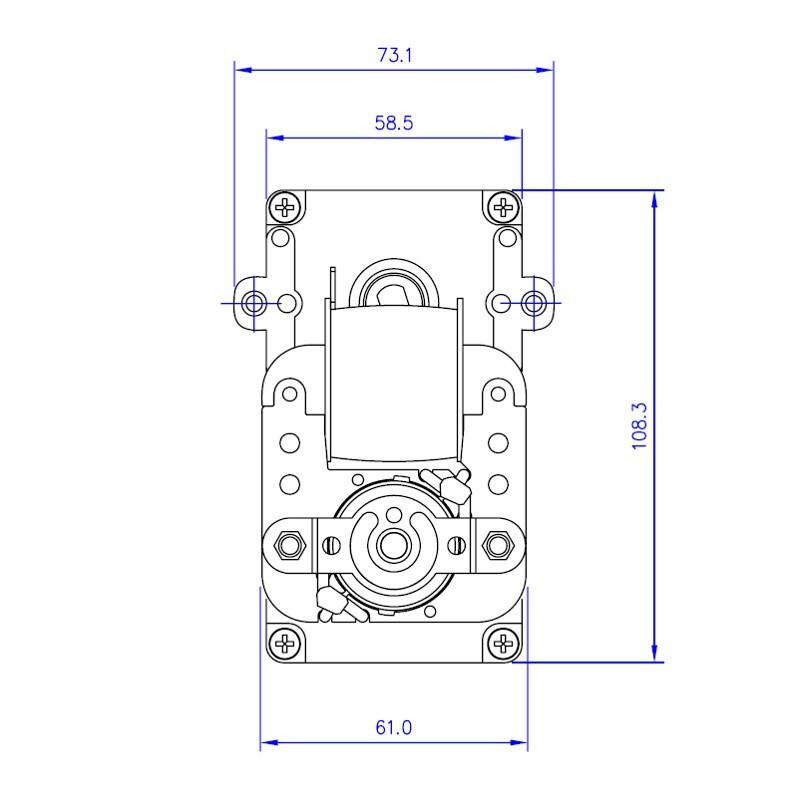

    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 1.8 kg
