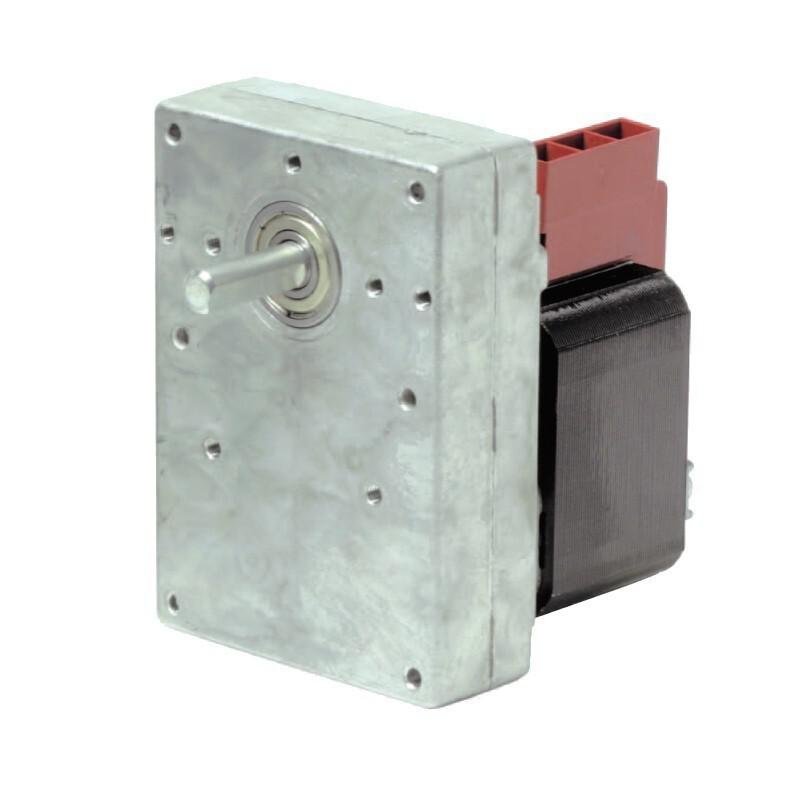

Designed for low speed and high torque applications. Kenta K9177280 geared motor is suited to be used as rotor in pellet stoves.
For stoves:
- ARCE ref. 1611909494 mod. Circle - Circle Canalizzata - Circle Canalizzata Plus - Circle Idro Large - Circle Idro Medium - Circle Idro Small - Circle Plus - Hetna - Hetna Plus - Lexia - lexia Plus
| General data | |
| Rotation speed | 3,00 RPM |
| Magnetic core | 40 mm |
| Shaft diameter | 9,50 mm |
| Shaft milling | Single |
| Rotation | Clockwise |
| Output torque | 30 Nm |
| Encoder | |
| Power supply | |
| Power consumption | 32 W |
| Power supply | 230/1/50 V/Ø/Hz |
| Physical Dimensions | |
| Dimensions (L x W x H) | 0.0 x 0.0 x 0.0 mm |
| Net Weight | 1.9 kg |
