Gearmotor VarmoTech FBT3 S95 M32 4.0E

SKU:

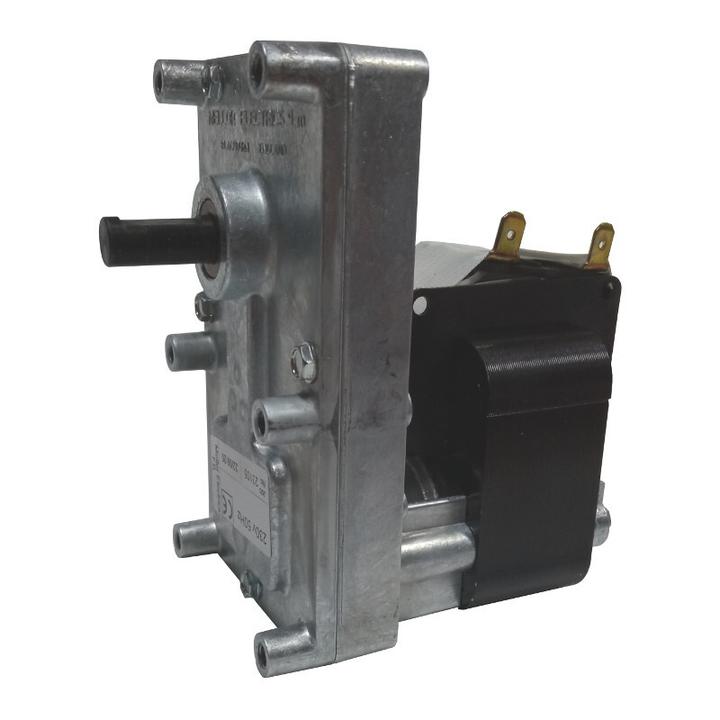

AC gearmotor 4.0 RPM with encoder and 9.5 mm shaft clockwise rotation.
Save 0.00 € (- 0 %)

191,60 € 191,60 € 191.6 EUR

157,05 €

    This combination does not exist.



    Designed for low speed and high torque applications. FB1271 geared motor is suited to be used as rotor in pellet stoves.

    For stoves:

    • CAMINETTI MONTEGRAPPA ref. 1044000800 mod. Aktiv 23 - Aktiv 28 - Aktiv 35 - Aq 21 - Aq 27 - Aq 32 - MB Pellet W15 - MB Pellet W19 - MB Pellet W23 - MB Pellet W27

    Technical data

    General data
    Rotation speed4,00 RPM
    Magnetic core32 mm
    Shaft diameter9,50 mm
    Shaft millingSingle
    RotationClockwise
    Output torque28 Nm
    Encoder
    Power supply
    Power consumption36 W
    Power supply230/1/50 V/Ø/Hz

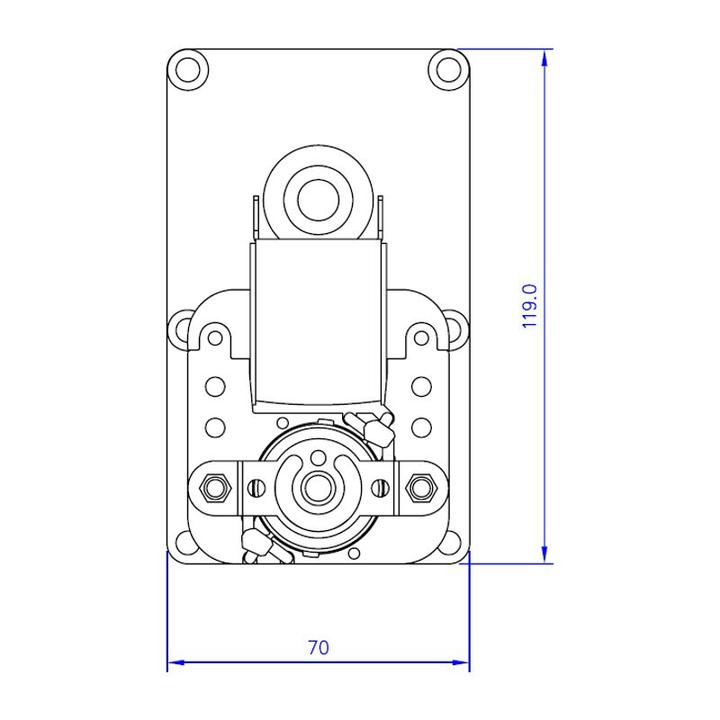

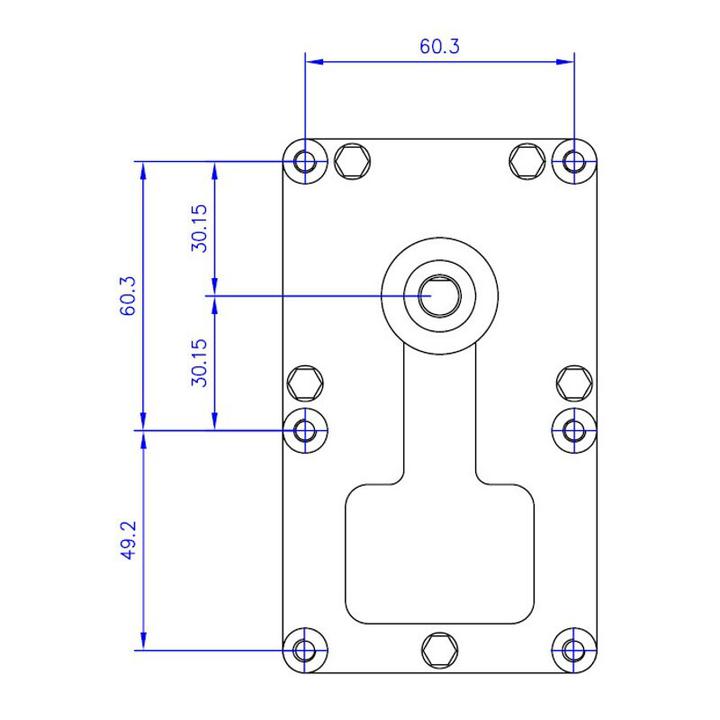

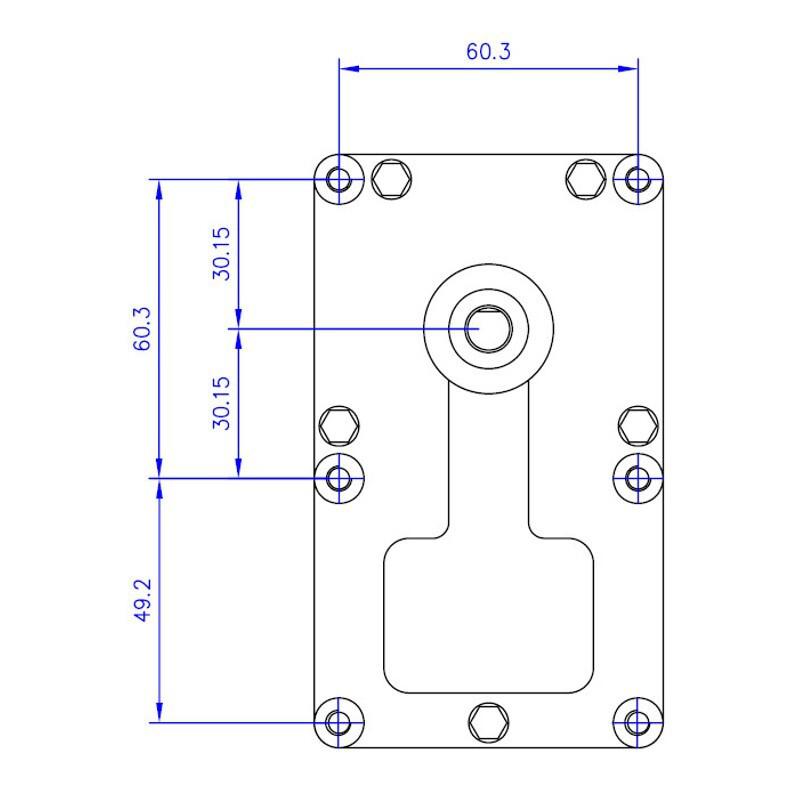

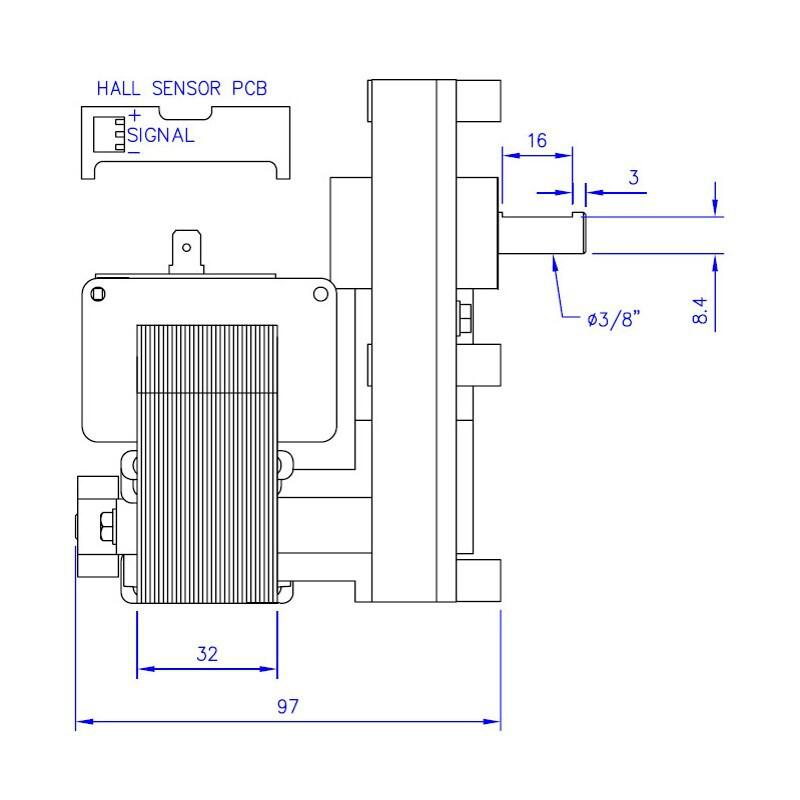

    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 1.9 kg
