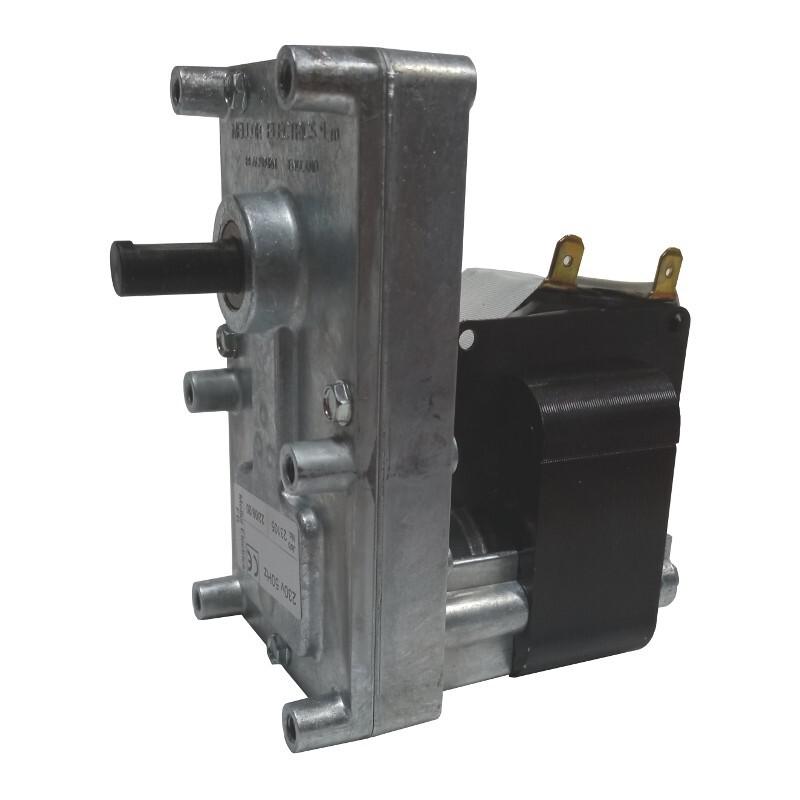

Gearmotor VarmoTech FBT3 S95 M25 1.5

SKU:

AC gearmotor 1.5 RPM with 9.5 mm shaft clockwise rotation.
Save 0.00 € (- 0 %)

139,10 € 139,10 € 139.1 EUR

114,02 €

    This combination does not exist.



    Designed for low speed and high torque applications. FB1171 geared motor is suited to be used as rotor in pellet stoves.

    For stoves:

    • ARCE ref. 1611909885 mod. Circle j - Circle j Plus - Hetna j - Hetna j Plus - Lexia j - Lexia j Plus - Mikrò - Mikrò j - Smart - Smart j

    • CADEL ref. 4160278 mod. Bistrot3 - Cloe - Cloe3 - Evo3 7KW - Rondò - Sweet - Wall3 plus

    • CAMINETTI MONTEGRAPPA ref. 1044000100 mod. As 6 - As 6 Evo - As 9 - As 9 Evo - Inside X9 - Inside X12 - LP6 - LP9 - LX9 - LX12 - LXE6 - LXE9 - LXE12 - Pellet Plus 1000 - Pellet Plus 6000AC - Pellet Plus 6000AV - Pellet Plus 7000AC - Pellet Plus 7000AV - Pellet Plus 8000 - Pellet Plus 8000 Power - Pellet Plus 10000 - Pellet Plus 10000 Power - Pellet Plus 11000 - Pellet Plus 11000 Power

    • EDILKAMIN ref. 665180 - 268130 - 230560 (FB1191 - FB1133 - MERKLE GM-MD.S3456) mod. Alba Marea 2004 - Corolla Moena - Flexa - Folk - Inpellet 49 - Inpellet 54 - Iris 2004 - Iris 2005 - Iris plus - Iris con programmatore orario - Iris up - Junior - Lilia - Lilia plus - Little - Mariù - Pellet più 54 - Pellinsert 54 - Pellstar - Rose - Seven - Trend - Trend 2005 - Trend plus - Twin

    • ITALIANA CAMINI

    • PALLADIO

    Technical data

    General data
    Rotation speed1,50 RPM
    Magnetic core25 mm
    Shaft diameter9,50 mm
    Shaft millingSingle
    RotationClockwise
    Output torque24 Nm
    Encoder
    Power supply
    Power consumption16 W
    Power supply230/1/50 V/Ø/Hz

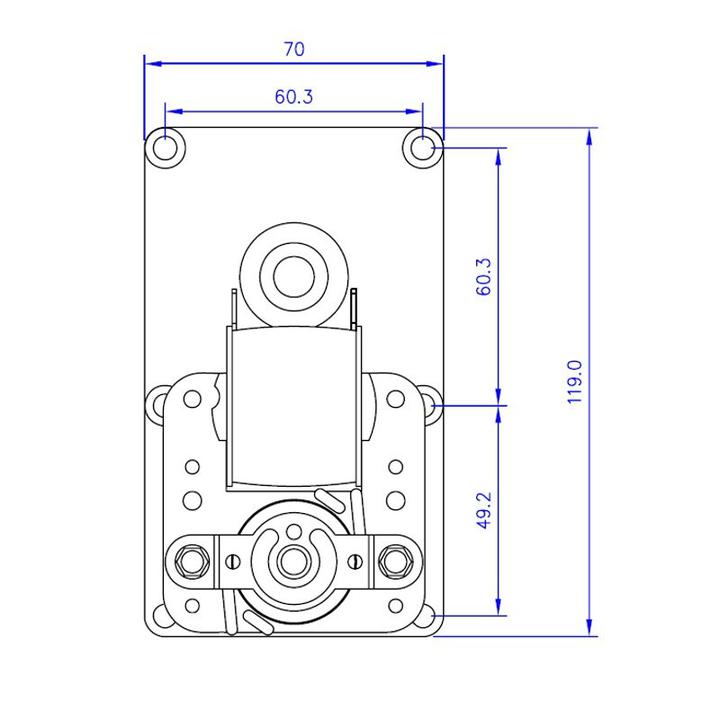

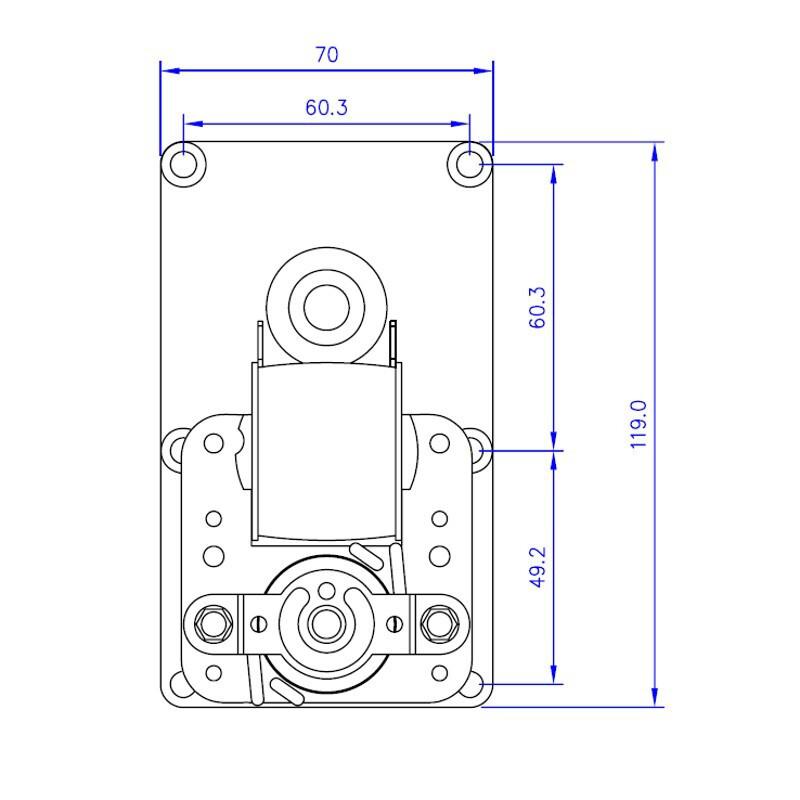

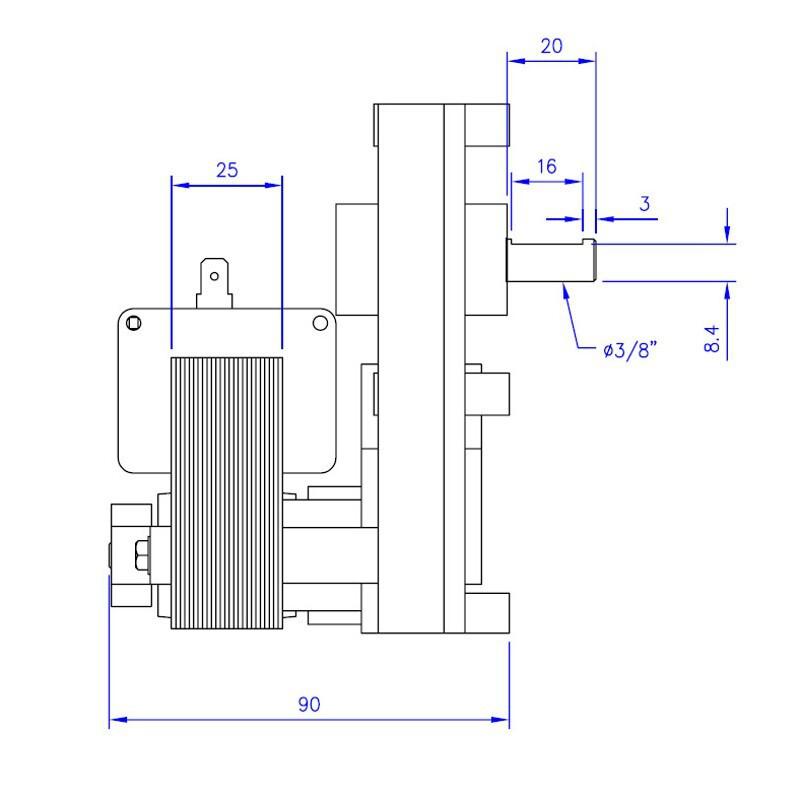

    Physical Dimensions
    Dimensions (L x W x H) 0.0 x 0.0 x 0.0 mm
    Net Weight 1.9 kg
