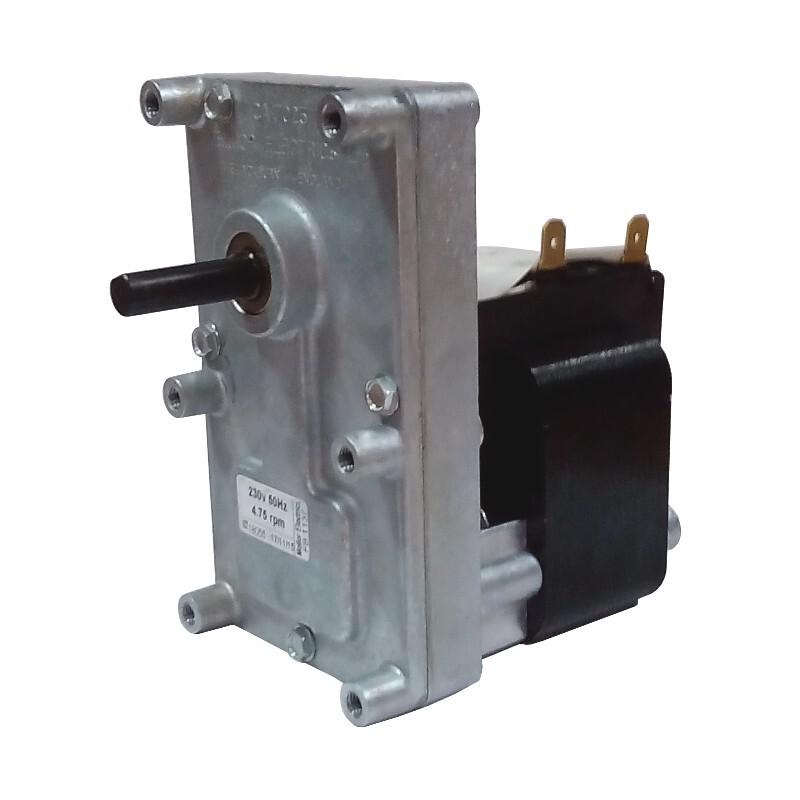

Designed for low speed and high torque applications. FB1137 geared motor is suited to be used as rotor in pellet stoves.
Compatible Mellor FB1079 - FB1225 - FB1094
For stoves:
-
ARCE ref. 1611909738 mod. Cicle idro XL
-
ECOTECK ref. 160-55-001N
-
EMAFLAM ref. R2600510 mod. Alma - Citra - Diama - Hema - Sandro
-
LA NORDICA EXTRAFLAME Ref. 002271013 - 2271013 Mod. Giordana - Iside Idro - LP20 - Lucrezia Idro - Lucrezia Steel - Melinda Idro - Melinda Idro Steel
-
RAVELLI ref. 160-55-001N mod. HRV160 12 - HRV135 ver.2 - HRV170 - HR evo 18 - HR160 - Snella - HRV160 14 - HR evo18 Touch - HR evo24 Touch - HRV200 - Tank 2014 - HRV160 Touch - HR evo Slim Pulitore - turbolatori - HR evo1824 Plus (coclea)
| General data | |
| Rotation speed | 4,75 RPM |
| Magnetic core | 38 mm |
| Shaft diameter | 8,50 mm |
| Shaft milling | Single |
| Rotation | Clockwise |
| Output torque | 27 Nm |
| Encoder | |
| Power supply | |
| Power consumption | 41 W |
| Power supply | 230/1/50 V/Ø/Hz |
| Physical Dimensions | |
| Dimensions (L x W x H) | 0.0 x 0.0 x 0.0 mm |
| Net Weight | 1.8 kg |
